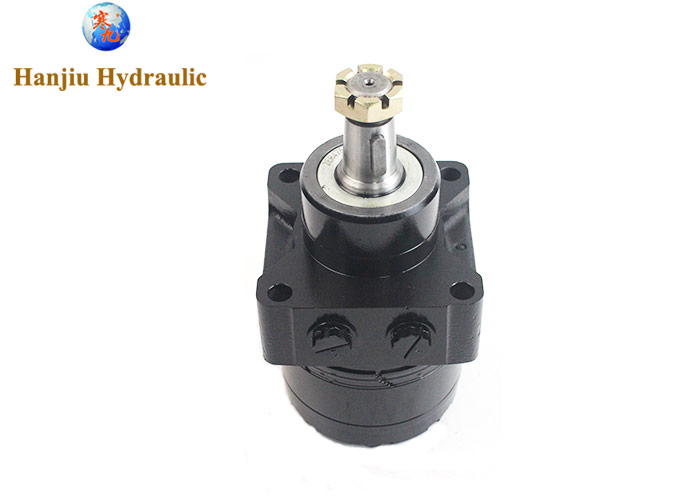

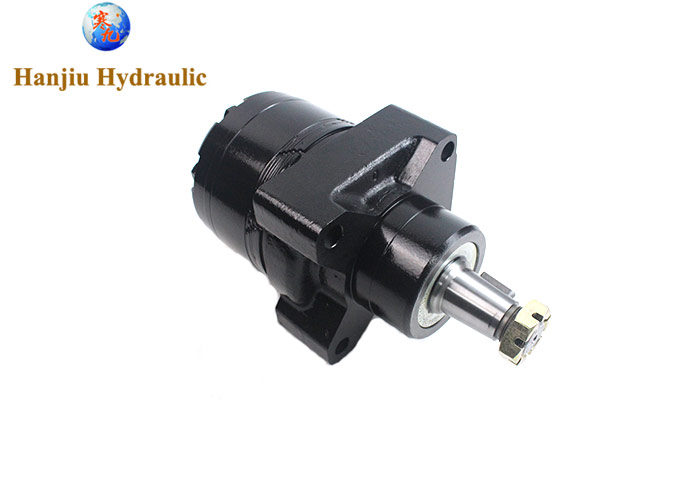

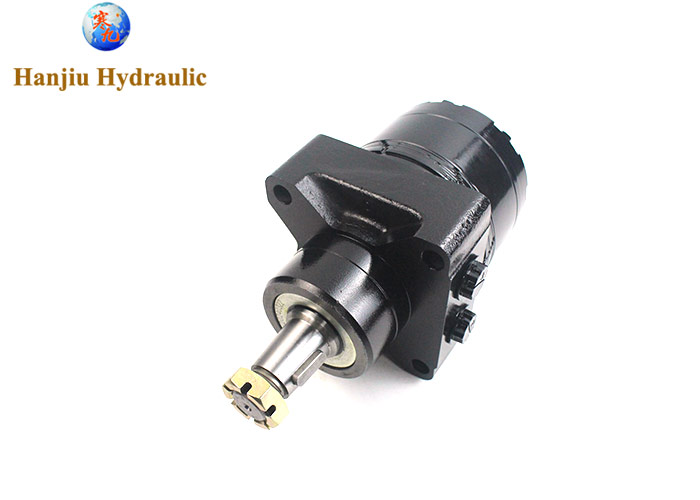

    Roller Stator RE 530/531 High Torque Motor Wheel Drive Motor With Tapered Shaft

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : BMER-2-475-TS-T4-R-B
    Certification : CE, ISO9001
    Price : 170 usd/pc
    Payment Terms : T/T, Western Union
    Supply Ability : 10000 pieces per year
    Delivery Time : 35 - 45 work days
    • Product Details
    • Company Profile

    Roller Stator RE 530/531 High Torque Motor Wheel Drive Motor With Tapered Shaft

    Roller Stator RE 530/531 high torque motor, wheel drive motor with tapered shaft


    Quick review:


    Model no.: BMER-2-475-TS-T4-R-B


    matching White motor RE530/531 ;Parker TG series motor


    displacement470 ml/r
    flangewheel mount
    pilot82.55*5
    portsBMER-2-475-TS-T4-R-B
    output shaft
    Cone-Shaft Ø31.75, Parallel key
    7.96×7.96×25.4
    rotationright
    paintblack

    Specification:


    TypeBMERBMERBMERBMERBMERBMERBMERBMERBMERBMERBMER
    125160200230250300350375475540750
    Geometric displacement (cm3/rev.)118156196228257296345371462540745
    Max. speed (rpm)cont.360375330290290250220200160140100
    int.490470425365350315270240195170120
    Max. torque (N•m)cont.32545053062570081090599010859801050
    int.38052560071079093010351140118012401180
    peak450590750870980112012851360126013801370
    Max. output (kW)cont.12.015.015.516.017.518.017.516.514.511.58.0
    int.14.017.518.019.020.021.020.019.016.515.010.0
    Max. pressure drop (MPa)cont.20.520.520.520.520.520.520.520.517.51410.5
    int.24242424242424241917.512
    peak27.627.627.627.627.627.627.627.620.520.514
    Max. flow (L/min)cont.4560707075808075757575
    int.6075858590959590909090

    Application

    • Medium-duty wheel drives
    • Augers
    • Mixers
    • Winch drives
    • Swing drives
    • Grapple heads
    • Feed rollers
    • Broom drives
