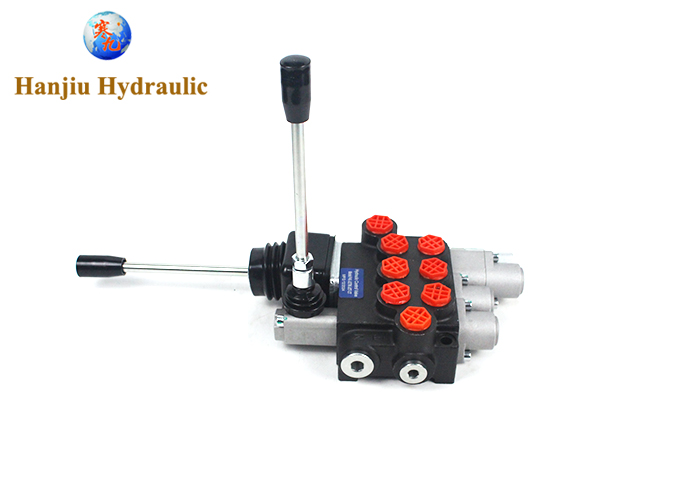

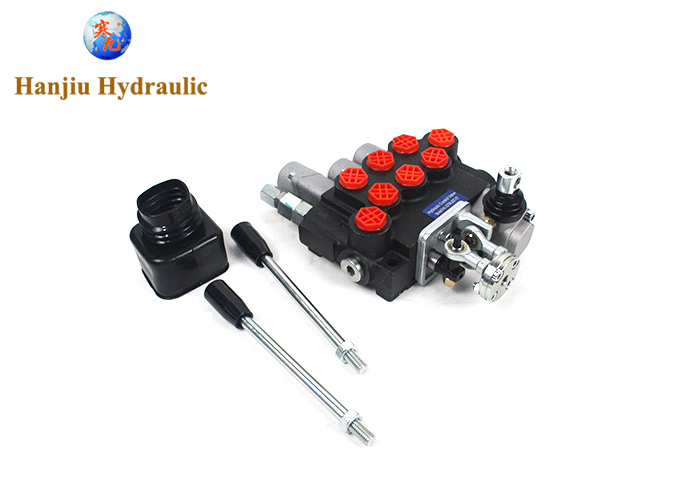

Monoblock Directional Control Valve 40 L/Min (11GPM) 3 Spool 4 Positions Double Actiong + Joystick

P40 series valves with middle-high pressure monoblock construction is developed based on Europe technology.

.Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be returned.

.Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure.

.Oil way: Parallel circuit, power beyond option

.Control Way: Manual, Hydraulic,Pneumatic, Electro-pneumatic, Electro-hydraulic,
Solenoid, Joystick, Joystick and Cable, Micro Switch

.Valve construction: monoblock construction, 1-7 levers.

Pressure range:

Maximum supply pressure: 250Bar (3625,94 psi)

Maximum pressure on return: 50Bar (725,19 psi)

Maximum pressure on sections: 300Bar (4351,13 psi)

The opening pressure of the bypass valve increases proportionally with increasing flow rate:

180 bar (2610,68 psi) at 10 l/min

190 bar (2755,72 psi) at 20 l/min

200 bar (2900,75 psi) at 30 l/min

210 bar (3045,79 psi) at 40 l/min

It is recommended to check and set the correct pressure before commissioning.

Self-adjustable, full rotation 30Bar (435,11 psi change).
