    BMR Series Hydraulic Orbit Motor And Hydraulic Cable Valve For Onion Harvesters

    Ask Lasest Price
    Brand Name : Hanjiu
    Model Number : BMR series
    Certification : ISO9001:2015
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal .
    Supply Ability : 100,000 units / Year
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    BMR Series Hydraulic Orbit Motor And Hydraulic Cable Valve For Onion Harvesters

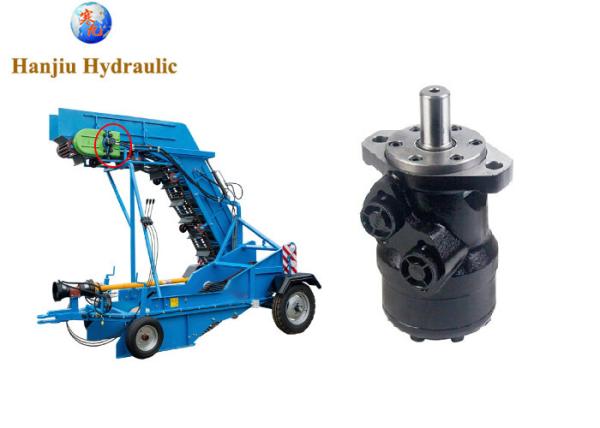

    Hydraulic Orbit Motor BMR Series motor and hydraulic cable valve for onion harvesters

    Hanjiu technology offer the BMR Series motors and hydraulic monoblock cable valve for Onion harvesters

    with different type of torque and displacement, flow rate with spring control


    Product details of Motors

    product typeBMR motors
    displacement80cc;100cc;125cc;160cc;200cc;250cc;315cc;400cc;500cc
    flange2-φ13.5 Rhomb-flange pilot φ82.5x8
    shaft25mm key shaft
    oil portsG1/2 manifold mount 4-M8,G1/4


    Main Specifications:

    Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

    TypeBMR
    BMRS
    36
    BMR
    BMRS
    50
    BMR
    BMRS
    80
    BMR
    BMRS
    100
    BMR
    BMRS
    125
    BMR
    BMRS
    160
    BMR
    BMRS
    200
    BMR
    BMRS
    250
    BMR
    BMRS
    315
    BMR
    BMRS
    375
    Geometric displacement (cm3/rev.)3651.781.5102127.2157.2194.5253.3317.5381.4
    Max. speed (rpm)cont.1085960750600475378310240190155
    int.12201150940750600475385300240190
    Max. torque (N·m)cont.72100195240300360360390390365
    int.83126220280340430440490535495
    peak105165270320370460560640650680
    Max. output (kW)cont.8.59.512.51312.512.510765
    int.9.811.2151514.514139.598
    Max. pressure drop (MPa)cont.141417.517.517.516.5131197
    int.16.517.52020202017.5151310
    peak22.522.522.522.522.522.522.52017.515
    Max. flow (L/min)cont.40506060606060606060
    int.45607575757575757575
    Weight (kg)6.56.76.977.37.688.599.5

    Details for Hydraulic monoblock valve


    type code:P40/P80

    spools ---1--7 levers ,with or without cable control

    function :spring control



    BMR Series Hydraulic Orbit Motor And Hydraulic Cable Valve For Onion Harvesters
